⚙️ Settings Menu Overview

This guide provides a breakdown of all settings found in the tinyLeague™ Hub app, from device management to advanced preferences. Use the visuals below to get familiar with each feature.


📶 Available Devices

This section lets you scan for and connect to available tinyLeague™ modules over Bluetooth.

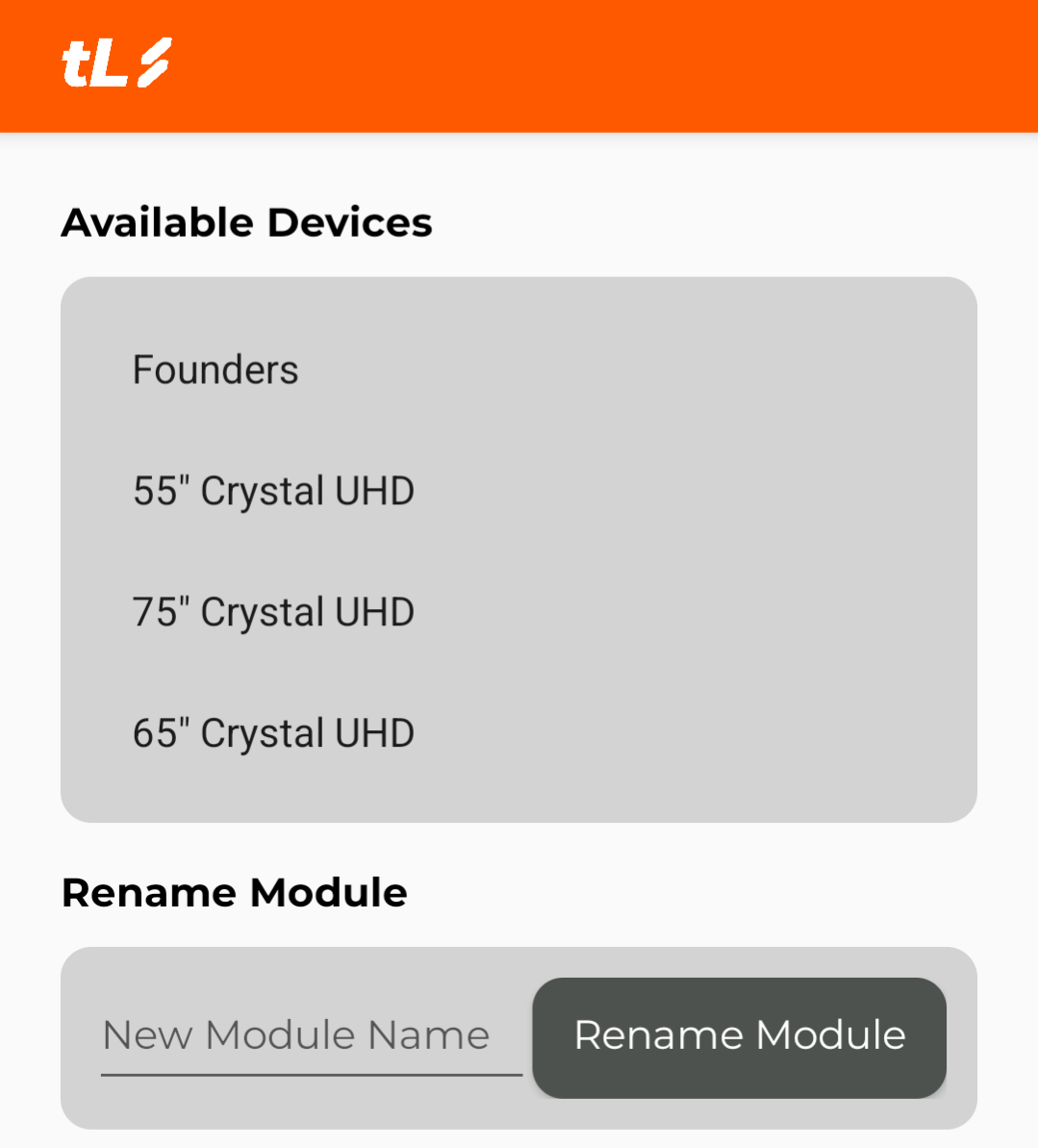

Searching for Available Devices

Scan for nearby modules to connect to

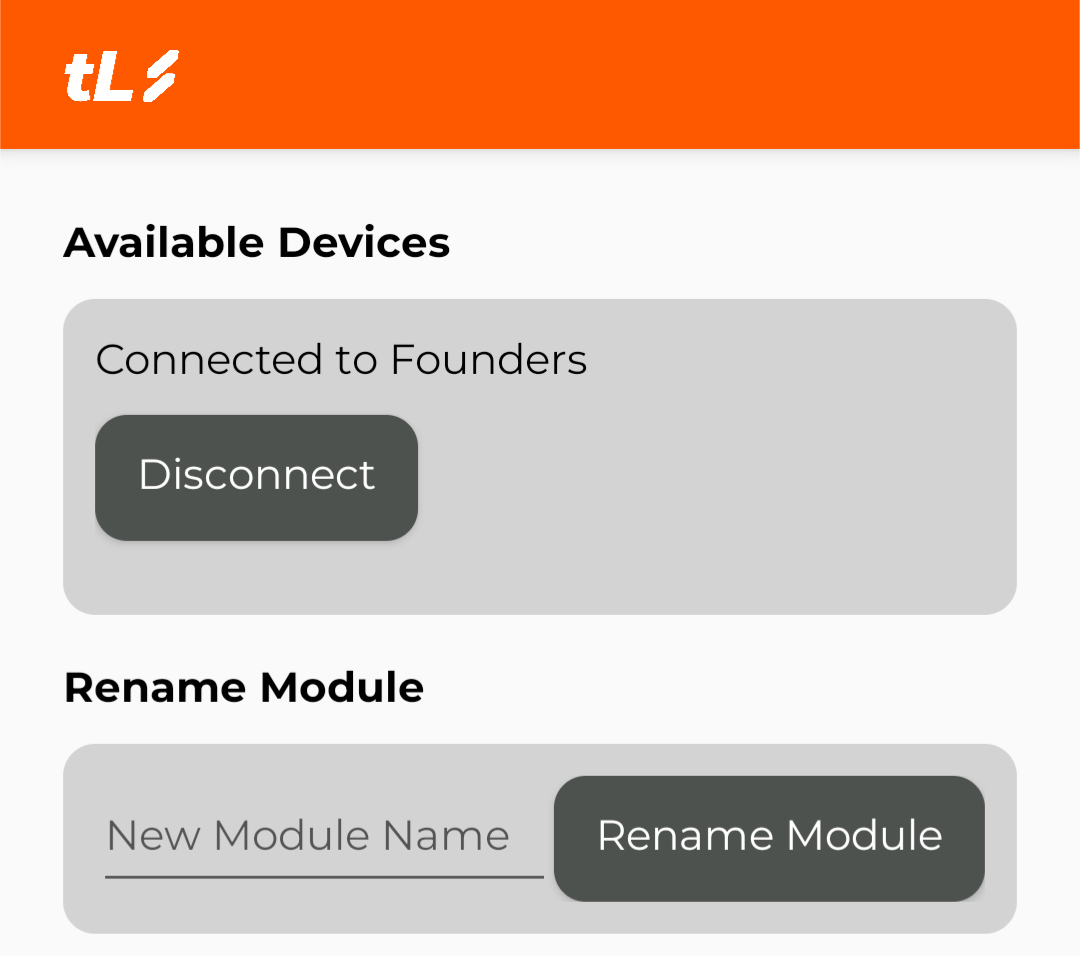

Connected Device Screenshot

Device connected and ready


✏️ Rename Module

Change the display name of the connected module — perfect for identifying clocks by location (e.g., "Court A", "Left Shot Clock").

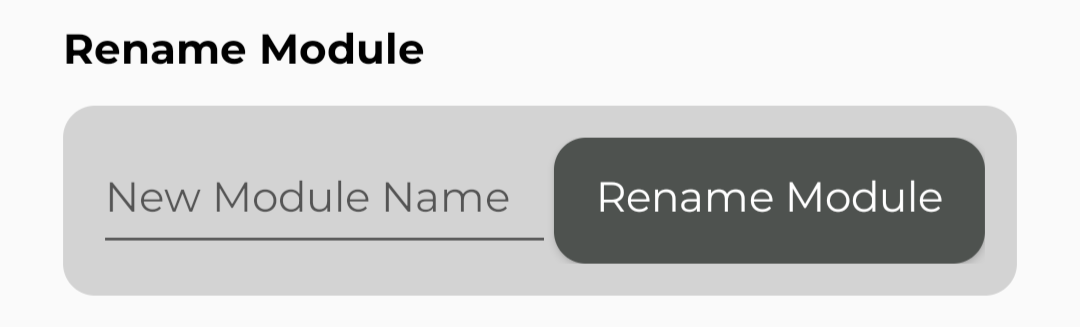

Rename Module Screenshot

Enter a custom label for your connected device

info

The name for the Founders Edition Shot Clock Module has a default character limit of 14.


🎨 Color Controls

Select primary and secondary LED colors to match team colors or improve visibility. Changes are immediately applied to the connected module.

Color Controls Screenshot

Customize your display's LED color scheme

info

Primary color sets the color of the clock when the time is above 5 seconds. Secondary color sets the color of the clock for the last 5 seconds, during the tenth-of-a-second rundown timer.


🔒 Settings PIN

Add a layer of protection by requiring a PIN to access settings. Great for ensuring volunteers or players don’t modify critical configuration.

Settings PIN Screenshot

PIN-protect sensitive settings access


⏱ Timer Settings

Adjust the default values for high and low player count shot clock durations. These will affect how much time appears on the clock when reset after the High/Low Switch is toggled.

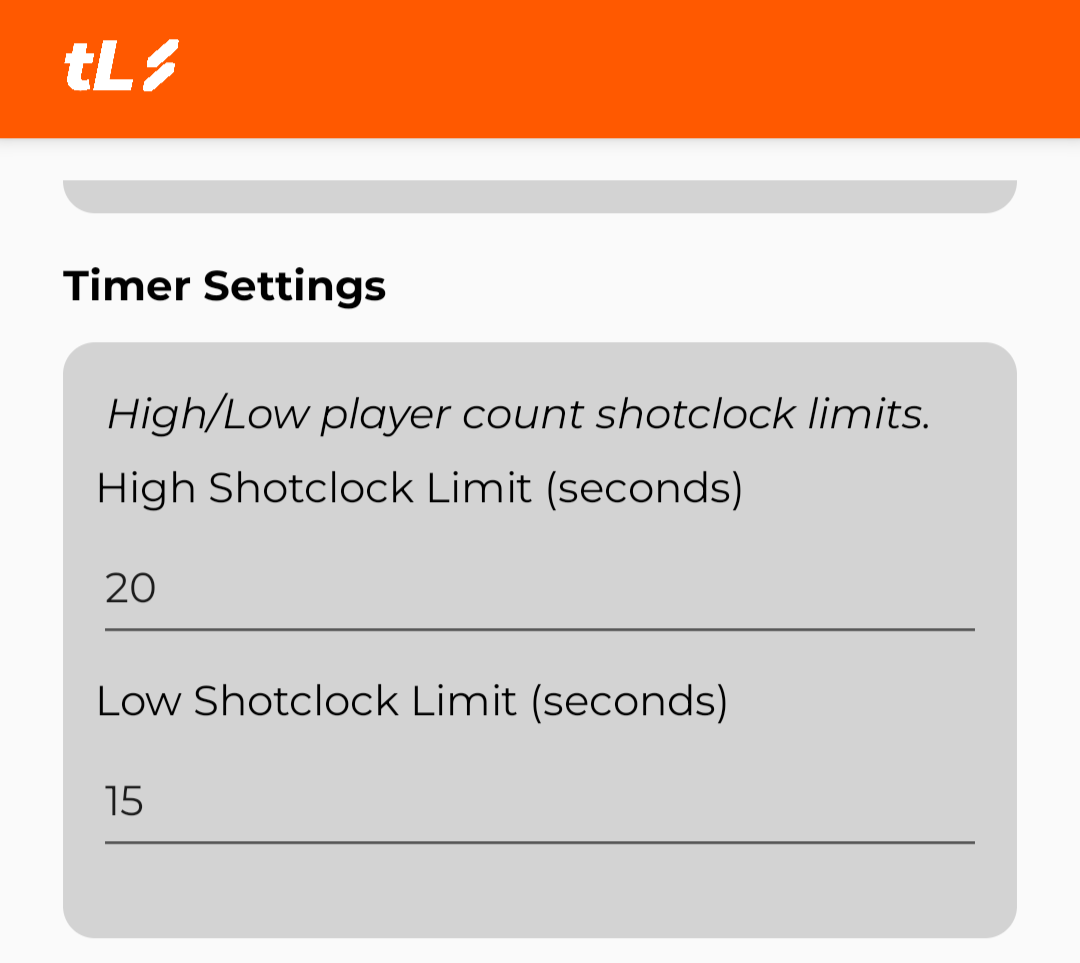

Timer Settings Screenshot

Fine-tune timing presets for game flow

info

Setting the high and low shot clock limits to the same value will result in the Timer Switch doing nothing.


🔊 Sound Settings

Enable audio cues and buzzer alerts for players and officials. These can be toggled independently for noise-conscious environments.

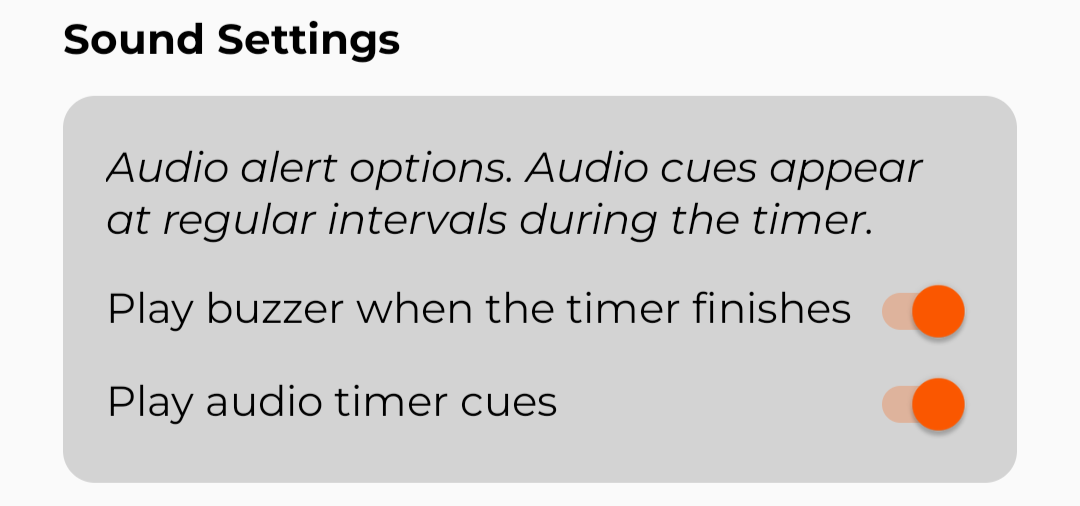

Sound Settings Screenshot

Control buzzer and in-game sound behavior


🔁 True Undo

When enabled, the app will continue tracking clock time in the background after a reset, allowing for more accurate "Undo" operations.

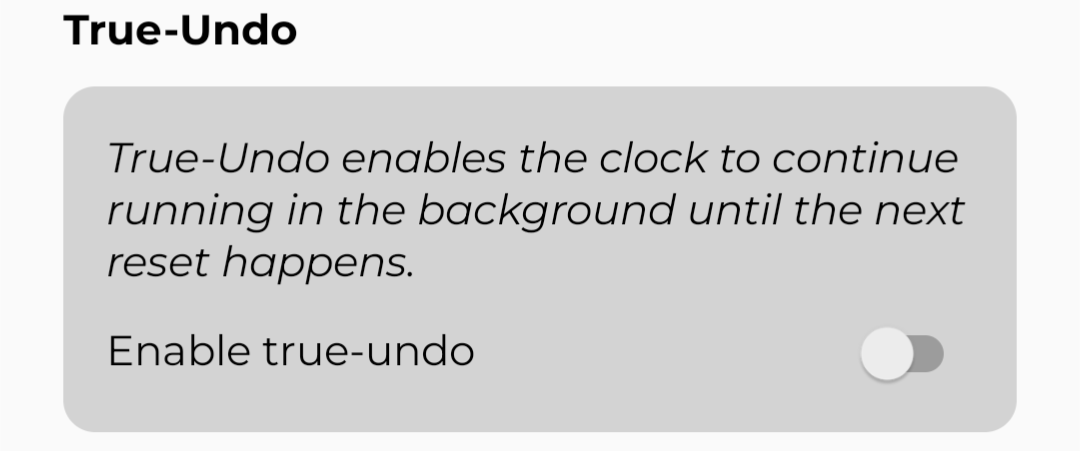

True Undo Screenshot

Enhance undo accuracy by tracking elapsed time


📲 Module Firmware Update

Upon connecting to your shot clock module, you may be prompted to perform a wireless firmware update using Over-The-Air (OTA) technology. Please acknowledge all three checkboxes, and set the phone as close as possible to ensure the module recieves all needed data.

tip

The DSS team reccommends all users update their firmware via OTA whenever prompted. This ensures your modules firmware is always working as best as possible!

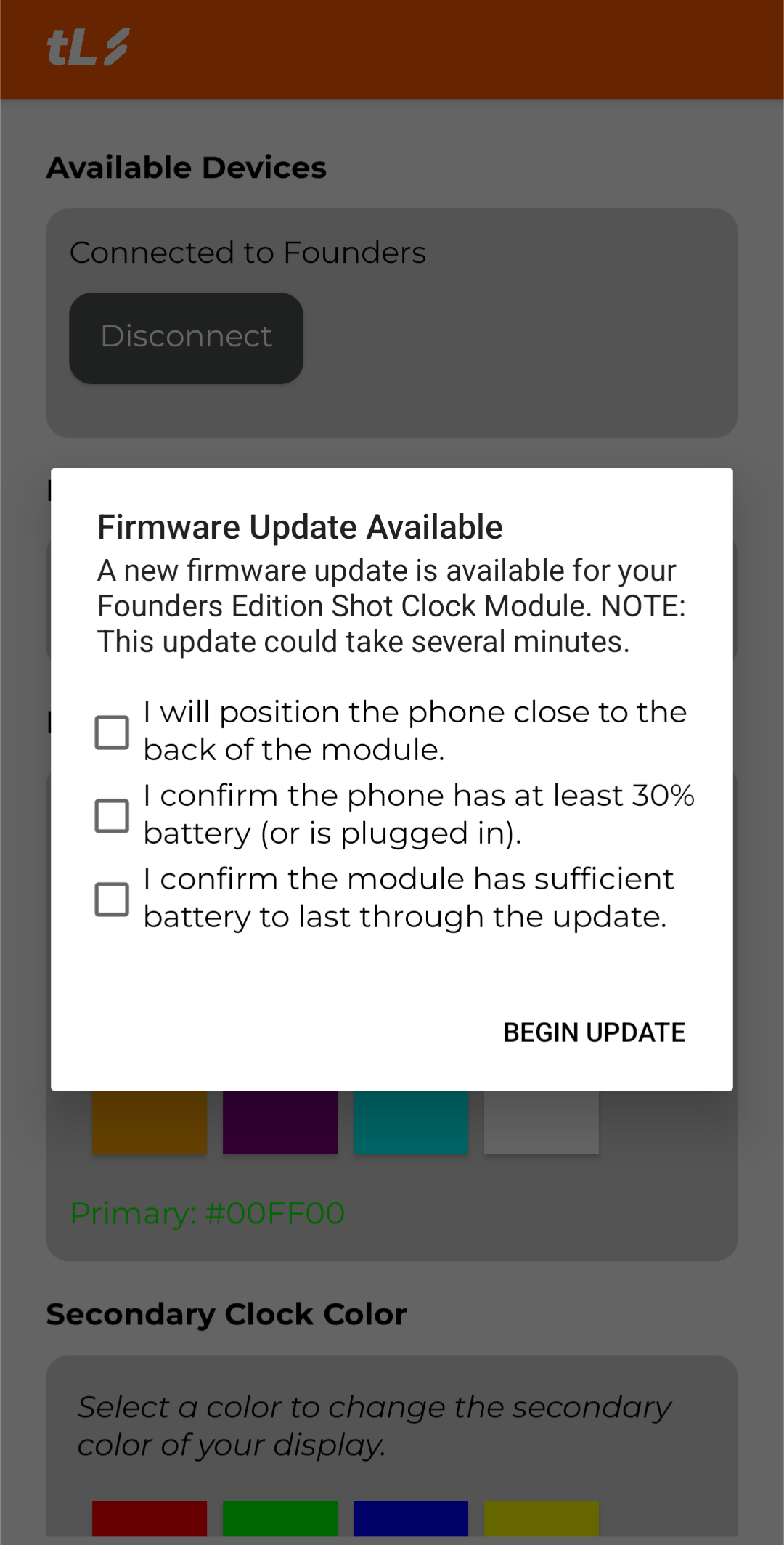

OTA Screenshot

Stay up-to-date by following along with this prompt whenever you see it
